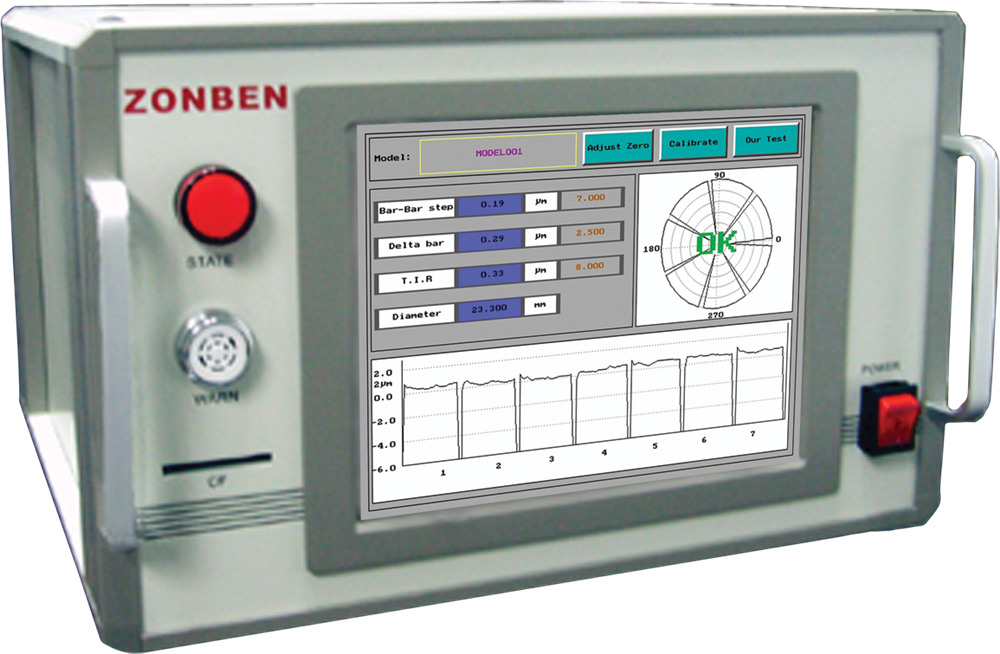

測量項目MEASUREMENT  ITEMS

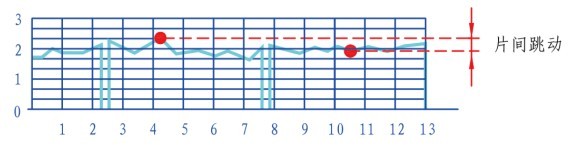

片間跳動 BAR TO BAR STEP

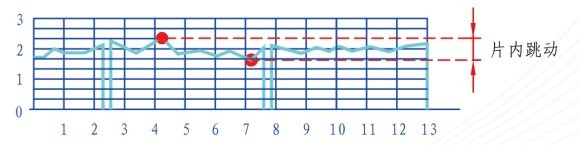

片內跳動 DELTA  BAR

圓周差異 TIR Total indicated Roundness

電樞直徑 DIAMETER

適用范圍MEASURE  DIMENSIONS

換向器直徑 5 ~ 45mm  Commutator diameter  5 ~ 45mm

換向器片數 3 ~ 48  Bars number  3 ~ 48

軸直徑 3 ~ 30mm  Shaft diameter  3 ~ 30mm

軸總長度 最長300mm  Total shaft length  300mm max

鐵芯直徑 最大100mm   Stack lamination diameter  100mm max

技術參數 TECHNICAL DESCRIPTION

儀器精度：0.01um  Instrument precision: 0.01 um

可重復性：高于0.2um  Repeatability : better than 0.2um

測量精度：高于0.2um  Measurement precision : better than 0.2um

特性：CHARICTERISTICS:

儀器操作簡便Esay to operator the machine

1、 觸摸屏系統使得參數設置與操作變得簡便快捷

Touch-screen system makes the parameter seting up and operation to be simple and quick

2、只需要將電樞裝卡到v型支架上，然后將手柄放低，測試結果將會自動的顯示在屏幕上。

To start one testing process , the operator only needs to load the armature into the “V” shafts and pull down the handle, then the results will be displayed on the screen automatically.

強大的存儲能力Powerful storage

200種不同型號電樞的參數可獨立地進行設置，如果某種型號的參數已設定好，再一次測試此型號電樞時只需對其型號進行一次選擇即可，而不用再對其所有參數再進行一次設定。

200 group of parameter for the different armatures can be set dividually, if you have finished the parameter setting, the second time ,you only need to select the right model of the armature ,but not set the parameter again.

測試數據可方便的進行編輯Easy to edit the test result

測試數據存儲在CF 卡中。依據不同的電樞型號，數據保存在以對應型號名命名的文件中，可直接以Excel 表格形式打開進行編輯。

The test results will be saved in the compact flash disk. According to its model name , data of different model is saved in the different file that named by the model name. you can open the file by Excel directly and edit it .
